Visualizing a gas flamer in Capture
You are not authorized to post a reply.
Advanced Member
Posts:63 Advanced Member

--
2017-02-09 12:56

    Hi guys,

    For an upcomming project I need gasflames and I wanted to visualize them, but unfortunately it wasn't an easy task. But finally there is a pretty good result I want to share with all of you, use it in your own projects, and maybe post feedback.

    Short explanation of what I did:

    - First I cut a video of a gasflame into three pieces the beginning, the middlesection as a loop, and the end

    - next I created a surface to map this video on, in my case its about 5m high and 85cm wide

    - I created a mediaplayer in capture with the three videos in a playlist,

    - I mapped it on that surface and set transparency to 100% (so black is transparent)

    - next I created a box, where I hid an Arri 5K to illuminate the flame, I also put some omnidirectionals in the flame to light it all the way up.

    - the last step was to patch and create a simple cue-list in EOS-Nomad where I control the mediaplayer to pick the right video and play it, when needed.

    and here the result:

    And here a dropbox-link with all the resourcefiles you need.
    https://www.dropbox.com/s...C9Ln6D5QpyKwoVa?dl=0

    All the best Marco


    Advanced Member
    Posts:63 Advanced Member

    --
    2017-02-09 21:26

    Hi all,

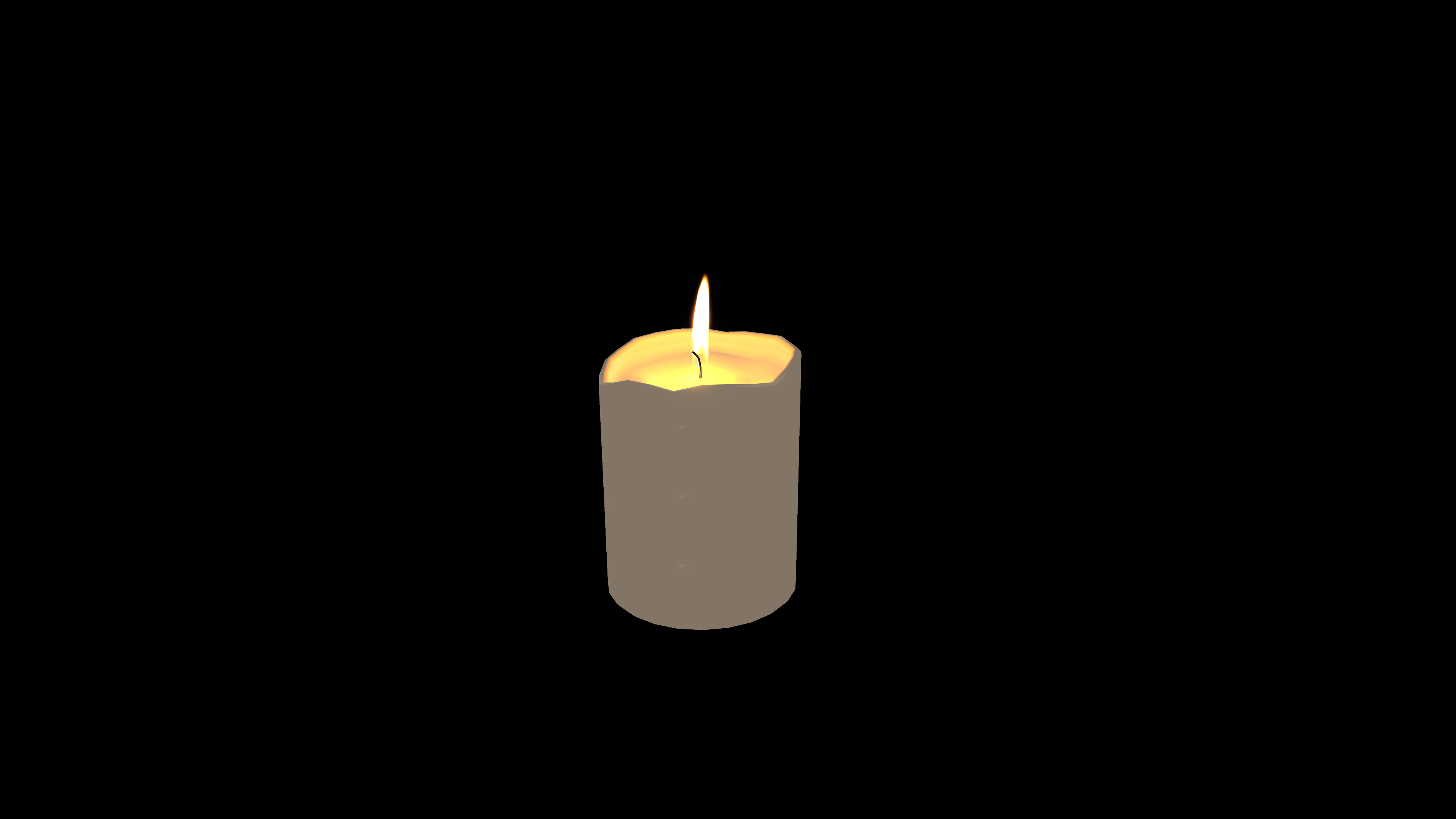

    I played around with some other Ideas and used my technique for visualizing Flamers to visualize a candle, basically the roots of our Job ;-)

    Also animated the flame of course.

    Like always use it if you like.

    Here are the files https://www.dropbox.com/s...1F_zHOjkyH3bFxa?dl=0

    All the best Marco

    New Member
    Posts:1 New Member

    --
    2019-10-22 00:14

    Hey,

    does anybody knows the reason why its not implemented now ?
