Unit number can be moved in plot view?
You are not authorized to post a reply.

LDit
Basic Member
Posts:10 Basic Member

--
2018-09-23 15:08

    Hi

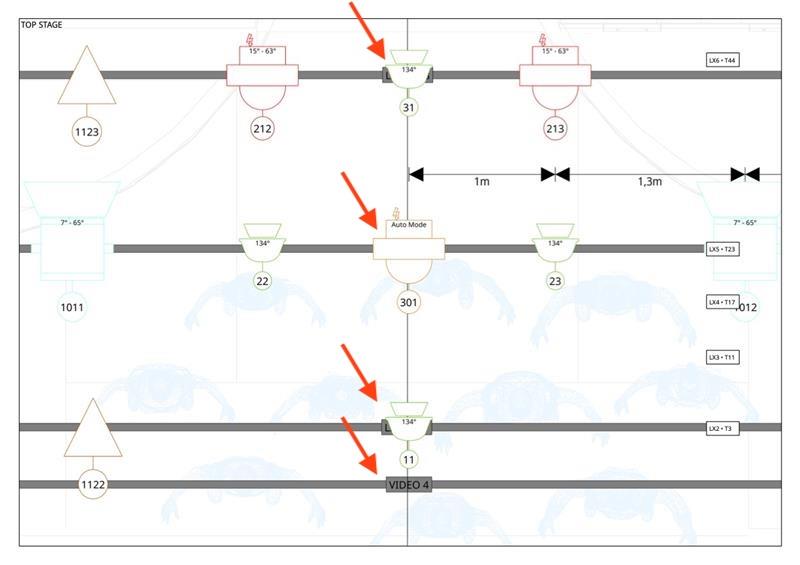

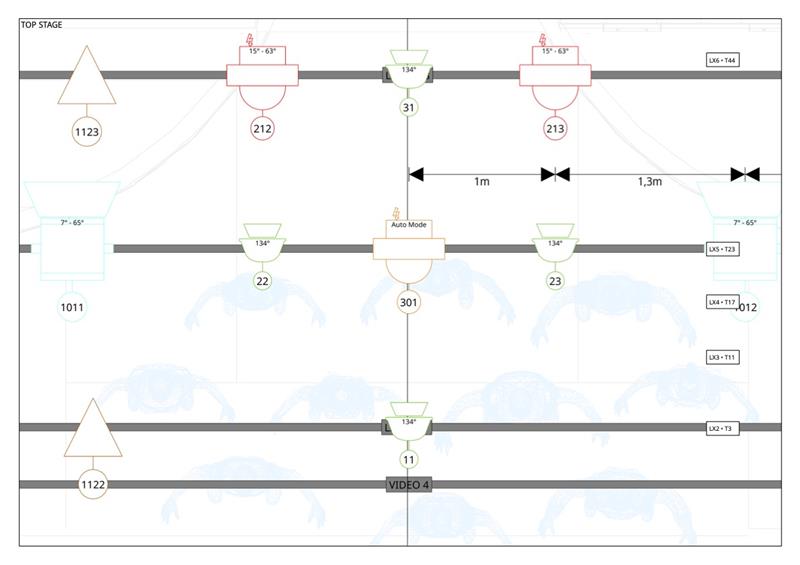

    The unit number of a fixture is by default located at the center of it. As I can understand the unit number is not considered as annotation. So, Is there a way to move it outside the fixture, and even more change the font size and color?

    By the way can I add custom text box anywhere in the plot view?

    thanks in advance for your help

    Lars Wernlund
    Staff Member
    Posts:2016 Staff Member

    --
    2018-10-01 09:38

    Hi,

    No, I'm afraid the unit number is stuck there in the middle with limited customization options. This is something that we're looking into improving in the future.

    Text boxes can be added in the plot editor. If you just need a small note you can add a plot symbol and use it's text field to annotate the plot.

    Technical Director
    Capture Visualisation AB
